Specifications

• Capstan Envelop PWM Pulsing Nozzle System – Utilizes solenoids on each nozzle body to regulate pressure and provide roughly a 9 mph speed range (5-14 mph, for example) where spraying pressure stays the same
• Boom Recirculation – Eliminates dead spots in wet boom plumbing, provides more consistent chemical mixing, and allows operator to charge booms with chemical or rinse booms with minimal chemical waste. Boom recirculation is standard when ordering Capstan on sprayer.
• Raven or Norac AutoBoom Height Control system senses distance from the ground and makes ongoing adjustments to keep the boom at the proper spraying height
• ISO-ready connection integrates with in-cab ISO display (John Deere 2630/4600, CNH AFS Pro 700, and others) to work with a variety of ISO rate controllers to also be compatible with auto section control, mapping and more
• Exclusive Steerable Hitch system automatically compensates on both hillsides and while turning on headlands to move the sprayer to follow the tractor tracks and significantly reduce crop damage. Runs through in-cab ISO display
• Electric fenceline nozzle control enables you to turn on/off your fenceline nozzles from the cab of the tractor
• Electronic sight gauge on 1350-gallon tanks provides accurate digital reading of material in tank
• Pentair Hypro chemical eductor with 7.5 gallon hopper and 316 stainless steel venturi for easier liquid mixing
• Pressure Transducer – shows boom line/spraying pressure on the rate controller page of in-cab display

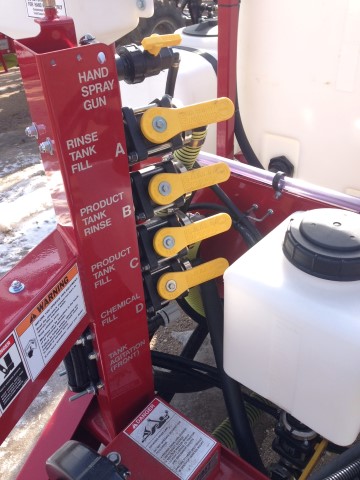

• Electric Trailer Valve Option – Gives operator control of pump inlet valve to rinse sprayer from the cab, control of electric tank agitation, and control of electric tank rinse balls

Specifications

• Capstan Envelop PWM Pulsing Nozzle System – Utilizes solenoids on each nozzle body to regulate pressure and provide roughly a 9 mph speed range (5-14 mph, for example) where spraying pressure stays the same
• Boom Recirculation – Eliminates dead spots in wet boom plumbing, provides more consistent chemical mixing, and allows operator to charge booms with chemical or rinse booms with minimal chemical waste. Boom recirculation is standard when ordering Capstan on sprayer.

• Raven or Norac AutoBoom Height Control system senses distance from the ground and makes ongoing adjustments to keep the boom at the proper spraying height
• ISO-ready connection integrates with in-cab ISO display (John Deere 2630/4600, CNH AFS Pro 700, and others) to work with a variety of ISO rate controllers to also be compatible with auto section control, mapping and more

• Exclusive Steerable Hitch system automatically compensates on both hillsides and while turning on headlands to move the sprayer to follow the tractor tracks and significantly reduce crop damage. Runs through in-cab ISO display
• Electric fenceline nozzle control enables you to turn on/off your fenceline nozzles from the cab of the tractor
• Wide variety of single tire and dual upgrades, such as 380/90R54 singles, 480/80R50 singles, 380/90R46 or R54 duals, as well as 320/90R54 duals with skip row capability for narrow row applications
• CAMSO 15” wide TTS tracks – 79% more flotation than 380/90R46 singles. Significantly reduces ground compaction to increase your application window
• Electronic sight gauge on 1800 and 2400-gallon tanks provides accurate digital reading of material in tank

• Pentair Hypro chemical eductor with 7.5 gallon hopper and 316 stainless steel venturi for easier liquid mixing
• Pressure Transducer – shows boom line/spraying pressure on the rate controller page of in-cab display
• Electric Trailer Valve Option – Gives operator control of pump inlet valve to rinse sprayer from the cab, control of electric tank agitation, and control of electric tank rinse balls

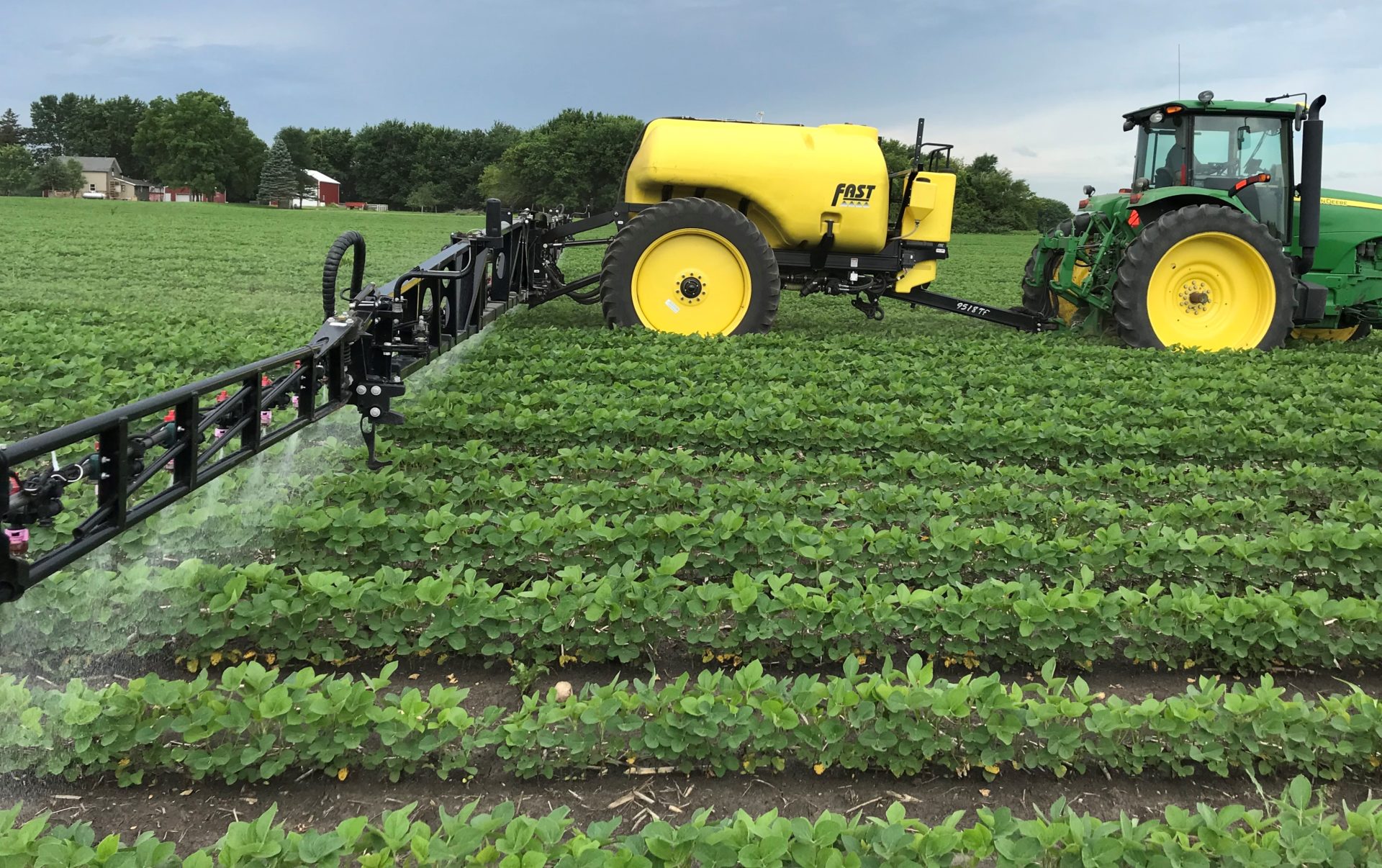

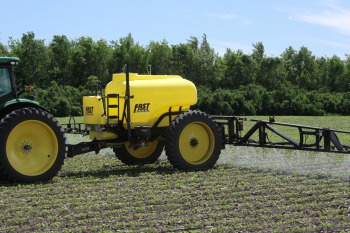

This pull-type sprayer keeps you productive in the field all day. It features a 120’ or 132’ truss-style boom and tank capacities of 1800 or 2400 gallons. Fast’s Exclusive ISO Hydraulic AutoYaw Boom Cushioning system uses sensors to detect and cushion the boom wing position at all times. In the case of sudden tractor movements, the sensors activate the hydraulic system to cushion the boom’s forward and rearward movement to significantly reduce stress, increase durability, and allow for FASTer spraying speeds. Also standard with AutoFold technology to decrease fold/unfold time and Raven XRT AutoBoom for superior boom height control. Pair our 2400 gallon tank with CAMSO Tracks to achieve unmatched efficiency and flotation.

Tank and Trailer

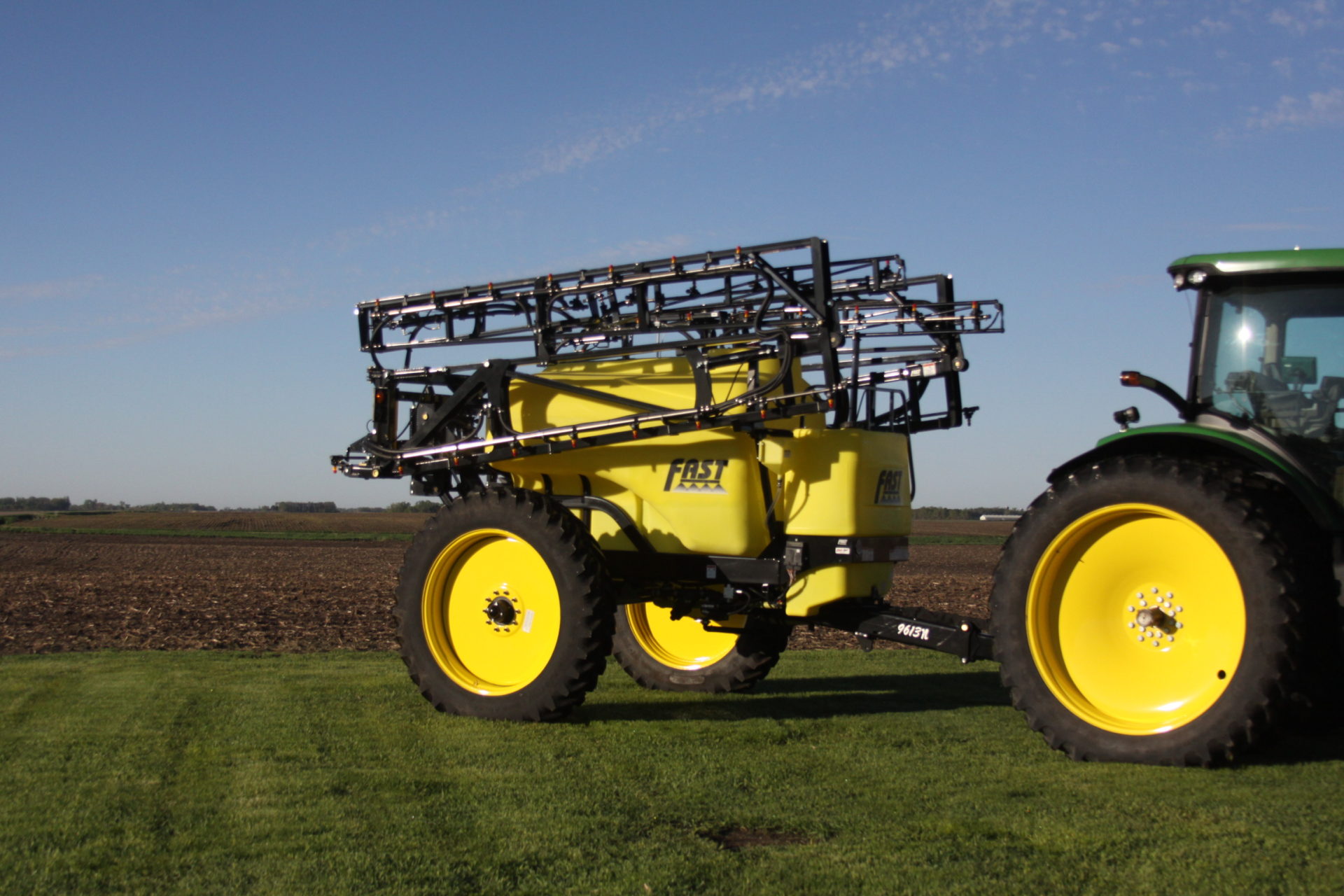

• Short-coupled trailer design features a hitch pin to axle length up to 4′ shorter than competitors, significantly reducing crop damage on hillsides and during turns

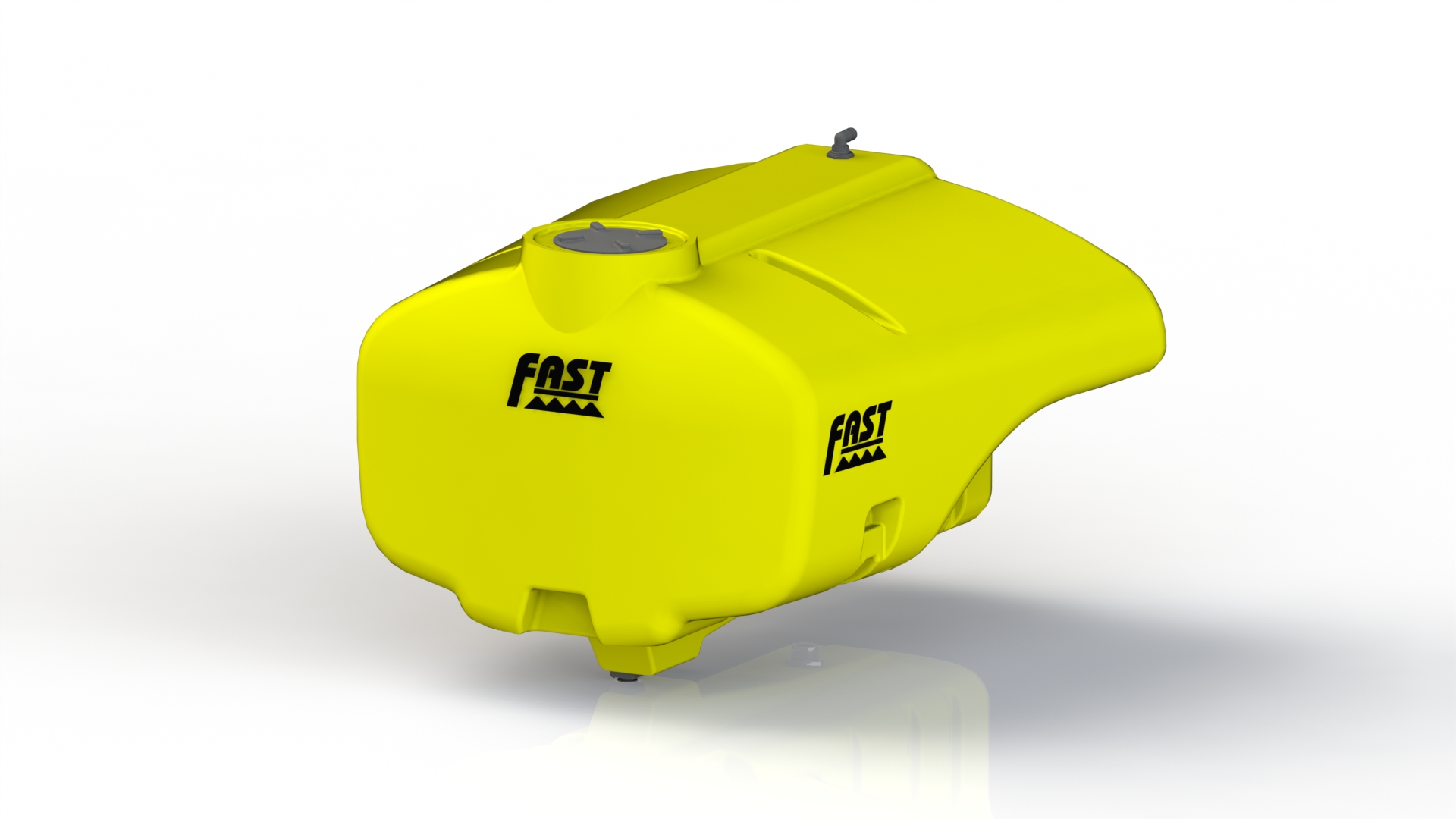

• Low-profile, patented “stealth” tank design improves rear vision
• Adjustable axle widths to fit any row spacing
• High-clearance frame for reduced crop damage
• ISO-ready connection integrates with in-cab ISO display (John Deere 2630/4600, CNH Pro 700, and others) to work with a variety of ISO rate controllers to also be compatible with, auto section control, mapping, and more
• FAST Stealth Tank design with deep sump sits inside the trailer to lower the center of gravity and provide excellent tank cleanout

Boom

• AutoFold technology to decrease fold/unfold time and ease operator stress
• Raven XRT AutoBoom for superior boom height control and increased on target spraying
• Truss-style boom for superior strength and durability
• Durable yet lightweight breakaway with fore and aft movement
• Self-stabilizing boom offers a superior ride, faster spraying capability, multiple spray heights and more accurate weed kill
• Exclusive ISO Hydraulic AutoYaw sensor system cushions the booms during sudden movements providing a more stable ride and increased durability

Spraying

• Long-lasting hydraulic pump features a flow limiter for overspeed protection
• Teejet AIXR air induction spray tips offer excellent weed kill and better drift controll
• Spray heights are adjustable from 20” to 72” for easier late-season spraying

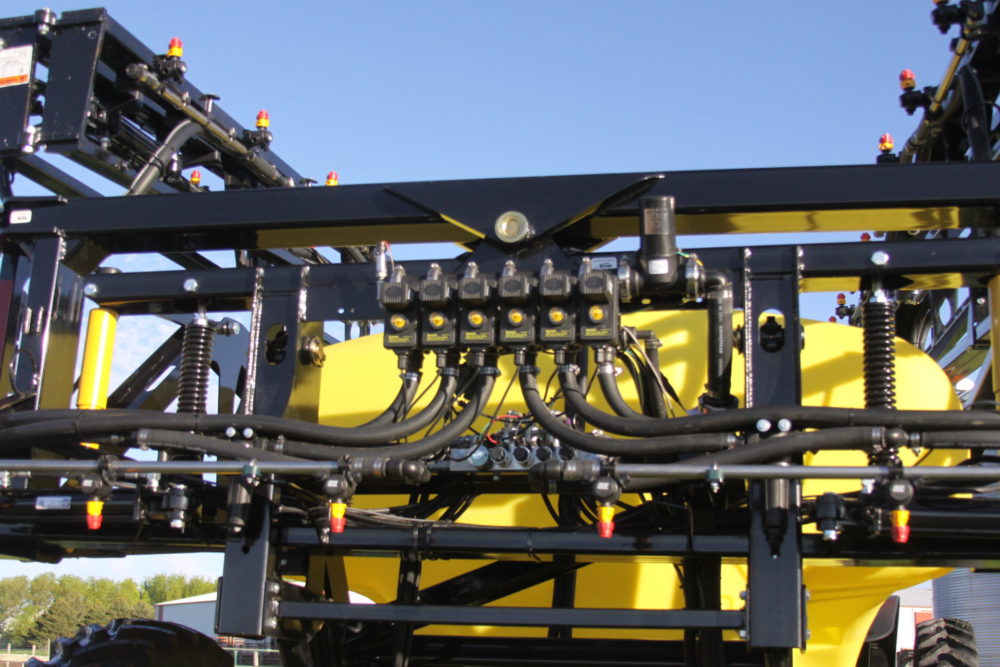

• Multi-section ball valves automatically return remaining liquid back to the tank at shutoff

Cleaning

• Stainless steel wet boom plumbing for more thorough residue clean-out
• Wet boom flush out valves standard

Specifications

• Capstan Envelop PWM Pulsing Nozzle System – Utilizes solenoids on each nozzle body to regulate pressure and provide roughly a 9 mph speed range (5-14 mph, for example) where spraying pressure stays the same
• Boom Recirculation – Eliminates dead spots in wet boom plumbing, provides more consistent chemical mixing, and allows operator to charge booms with chemical or rinse booms with minimal chemical waste. Boom recirculation is standard when ordering Capstan on sprayer.
• Exclusive Steerable Hitch system automatically compensates on both hillsides and while turning on headlands to move the sprayer to follow the tractor tracks and significantly reduce crop damage. Runs through in-cab ISO display.
• 60’ and 66’ Wing Option – adds a bolt-on breakaway to the end of the main wing that can be manually folded out to spray at a 60’ or 66’ sprayer width to stay on planter tracks when starting a field

• Electric fenceline nozzle control enables you to turn on/off your fenceline nozzles from the cab of the tractor
• Wide variety of single tire and dual upgrades, such as 380/90R54 singles, 480/80R50 singles, 380/90R46 or R54 duals, as well as 320/90R54 duals with skip row capability for narrow row applications
• CAMSO 15” wide TTS tracks – 79% more flotation than 380/90R46 singles. Significantly reduces ground compaction to increase your application window
• Electronic sight gauge on 1800 and 2400-gallon tanks provides accurate digital reading of material in tank

• Pentair Hypro chemical eductor with 7.5 gallon hopper and 316 stainless steel venturi for easier liquid mixing
• Pressure Transducer – shows boom line/spraying pressure on the rate controller page of in-cab display
• Electric Trailer Valve Option – Gives operator control of pump inlet valve to rinse sprayer from the cab, control of electric tank agitation, and control of electric tank rinse balls

This sprayer is a game-changer for increasing efficiency when spraying high gallons per acre or for growers that have large fields to cover significantly more acres between fills. We have also seen that it will reduce the labor needed to tend the sprayer while spraying high gallons per acre. Empty out the entire tanker or tender trailer into the sprayer in one fill, go back to the farm or co-op with the tender trailer to fill back up, and since the sprayer had so many more gallons to spray out before the tanker/tender needed to be back to the field, there is significantly less/if any waiting in the field and much better labor and equipment utilization. This sprayer is also capable of high flow capacities needed for pre-plant nitrogen spraying at 15 mph and 60 gallons per acre with a 120′ boom. Pair all this with Fast’s field proven 120′ or 132′ boom with Exclusive Hydraulic AutoYaw boom cushioning and standard CAMSO 36″ wide tracks (smaller sizes are available), this sprayer is going to be a significant boost for large operations and custom applicators looking to cover more acres per day with better labor utilization.

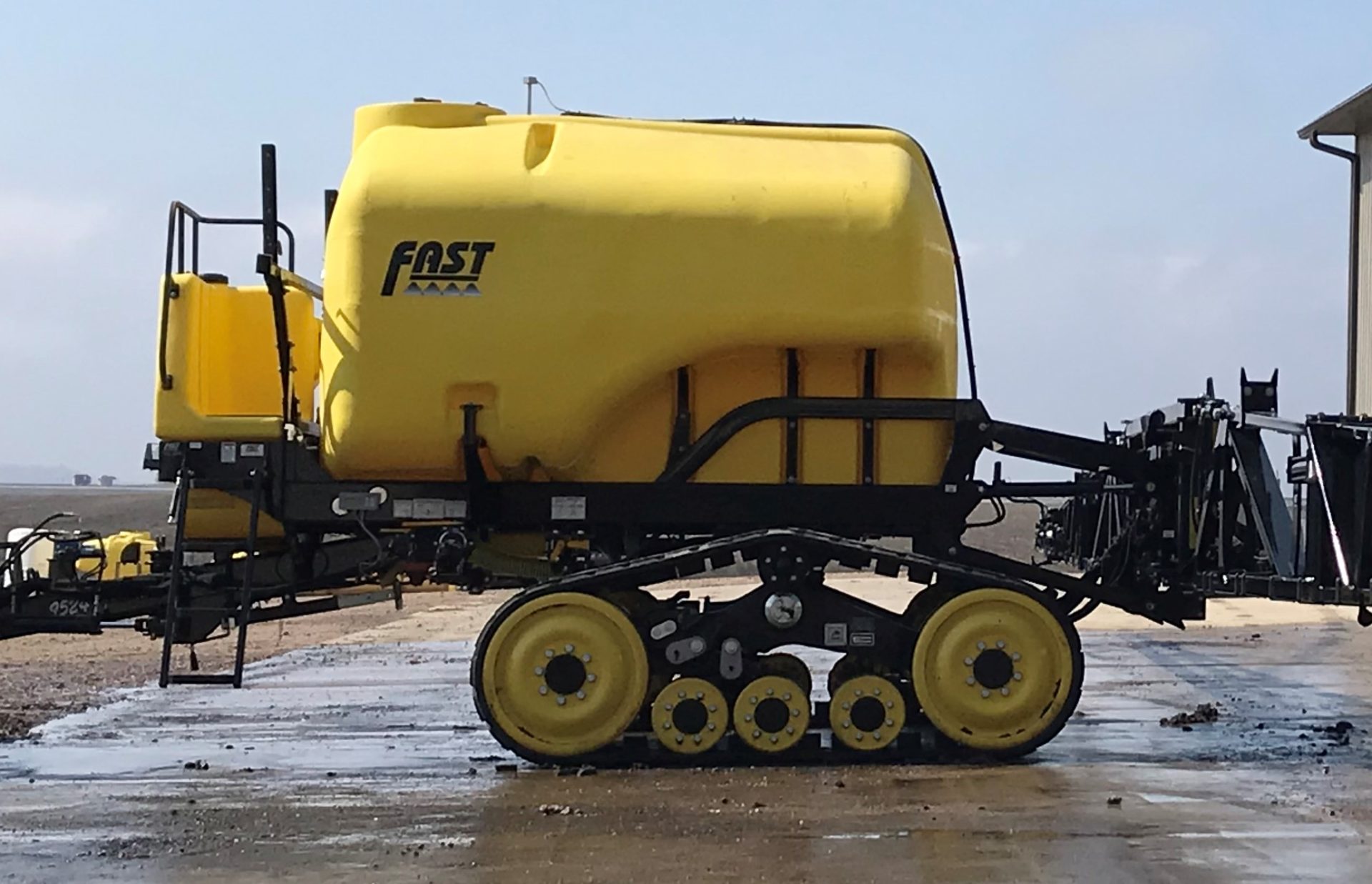

Trailer and Tracks

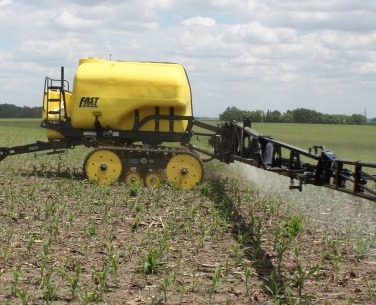

• 5000 Gallon Tank
• 36″ Wide CAMSO TTS70 tracks – 30″ and 24″ widths available for small grains application
• Low 14 psi ground pressure when tank is completely full with 36″ wide tracks – reduces compaction and allows for pre-emerge spraying
• Two Ace 750 Oasis Wet Seal Pumps – One PWM pump dedicated to efficiently push product through the boom and one non-PWM pump for tank agitation
• 3″ line coming off pump with stainless steel “Y” that splits into  two 2″ lines that feed the ball valve manifolds on each side of the boom
• Stainless Steel Agitation Tube
• ISO-ready connection integrates with in-cab ISO display (Deere 2630/4600, CNH Pro 700/1200, and others) to work with a variety of ISO rate controllers to be compatible with auto section control and mapping. Raven RCM ISO Rate Controller available to be factory installed

Boom

• Exclusive ISO Hydraulic AutoYaw sensor system cushions the forward and rearward movement of the booms during sudden tractor movements providing a more stable ride and increased durability
• Truss-style boom incorporates DOMEX steel for superior strength and durability
• Durable yet lightweight breakaway with fore and aft movement
• Raven XRT ISO Autoboom Height Control Standard
• Boom Lights – Blue Spray Lights Standard
• Self-stabilizing boom offers a superior ride, faster spraying capability, multiple spray heights and more accurate weed kill

Plumbing

• 225 gallon per minute flow capacity – 60 gallons per acre and 15 mph with 120′ boom
• 10 Ball Valves Standard
• High Flow Nozzle Bodies
• Boom End and Strainer Clean Out Valves
• Stainless Steel Wet Boom Plumbing
• Two separate 3″ Fills for the 5000 Gallon Main Tank and 300 Gallon Rinse Tank
• Simple, Easy to Use Plumbing System

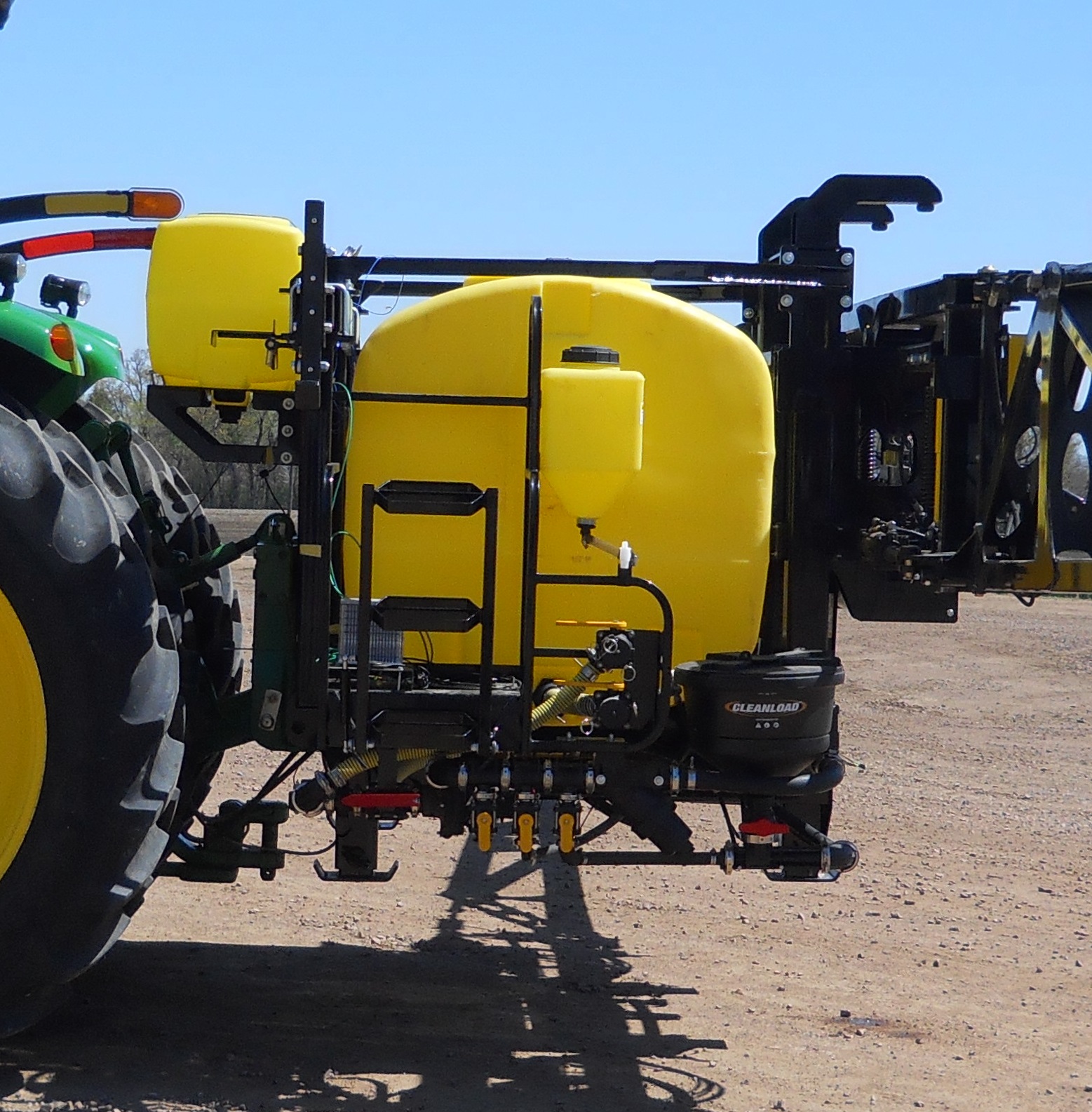

The 963PTF offers a smooth ride, and durable boom structure with the same boom design as all Fast trailer sprayers. With the parallel link system, you can adjust boom height for easy spraying at all crop stages, and the stainless steel tank helps you get a thorough cleanout, preventing residue build-up. An excellent option to utilize an existing tractor on your farm and provide great maneuverability in the field.

Boom

• 6 different boom sizes to match your planting width – 80′ boom folds to 40’/60’/80′, 90′ boom folds to 60’/90′ and 100′ boom folds to 40’/70’/100′
• Durable yet lightweight breakaway with fore and aft movement
• Foldable boom minimizes traffic patterns on headlands and field borders
• Self-stabilizing boom offers a superior ride, faster spraying capability, multiple spray heights and more accurate weed kill
• Parallel link system gives the operator maximum boom height adjustability for all stages of crop growth
• Tri-Fold boom design provides excellent cab visibility when traveling between fields

Spraying

• Long-lasting hydraulic pump features a flow limiter for overspeed protection
• Teejet AIXR air induction spray tips offer excellent weed kill and better drift control
• Spray heights are adjustable from 20” to 72” for easier late-season spraying
• Multi-section ball valves

Cleaning

• Stainless steel wet boom plumbing for more thorough residue clean-out and higher flow rates
• Wet boom flush out valves standard
