The UT3P is a compact and versatile trailer sprayer that is ideal for spraying in difficult-to-reach areas, such as field corners and along fence lines. It features a smaller boom than other trailer sprayers, with options for manual fold booms of 25′, 30′, and 40′, as well as a hydraulic fold boom of 40’/45′.
A Quick Look at the UT3P
The sprayer also offers a boomless option, which includes two broadcast nozzles mounted on the back of the equipment. The UT3P has a durable and lightweight frame and tank, available in 250 or 300-gallon capacities, and comes equipped with either a Hypro 6500C PTO 540 4-roller pump or an Ace hydraulic pump.
Its transport width is only 8′, making it easy to haul, and it features fork pockets integrated into the frame for easy movement around the yard. Additionally, the sprayer is coated with a baked-on powder paint that resists the effects of harsh chemicals, extending the equipment’s life and increasing its resale value.

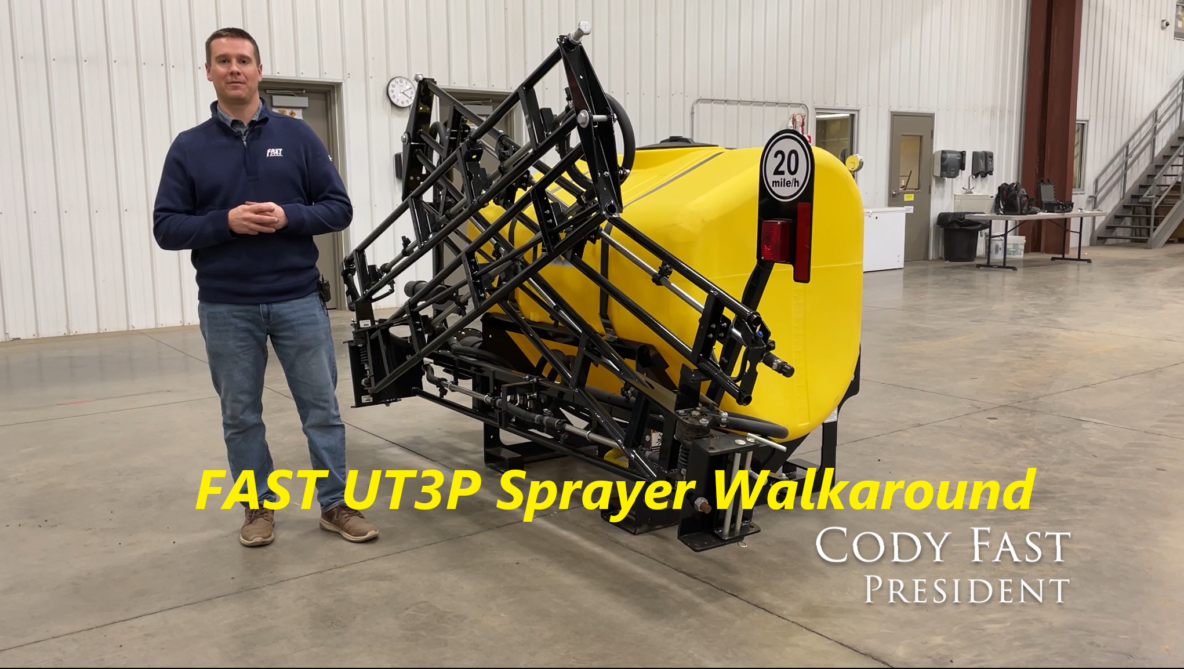

Check out the trailers in action!
UT3P Specific Features
Boom
- 25′, 30′, and 40′ in Manual Fold
- 40’/45′ in Hydraulic Fold
- Extremely durable breakaway wing design
- Boomless option, with two broadcast nozzles
Frame and Tank
- Choose from either 250 or 300-gallon capacities
- Field-proven, durable Hypro 6500C PTO 540 4-roller pump or Ace hydraulic pump
- Narrow, easy-to-haul 8′ transport width
- Fork pockets integrated into frame for ease of movement around the yard
- Durable yet lightweight breakaway with fore and aft movement
- Baked on powder coat paint resists effects of harsh chemicals, increasing equipment life and resale value
