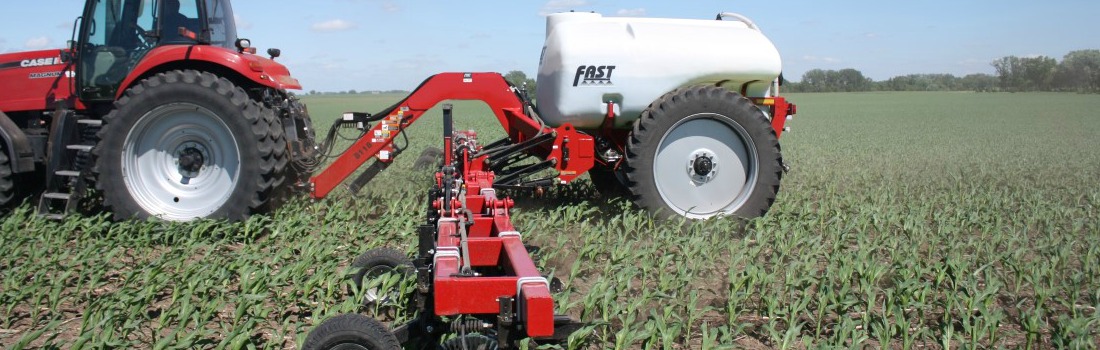

Tank and Trailer

• Low-profile, patented “stealth” tank design improves rear vision and improves stability
• Sloped sump tank design assists in maximum clean-out
• Choose from 2 tank capacities: 1,050 or 1,350 gallons
• Single-reach tongue enables a sharper turning radius with less crop damage
• Short-coupled trailer minimizes crop damage on hills and during turns, resulting in greater yield
• Option to choose John Blue ground drive pump
• Option to substitute 380/90R46″ tires on the 1350-gallon model
• Baked-on powder coat paint resists effects of harsh chemicals, increasing equipment life and resale

Toolbar

• 7″x7″ tube toolbar can be used at 30′ or 40′ width
• External hydraulic fold cylinder enables operator to fold in the toolbar at 40’ and still use it at 30’
• Trademarked Hydraulic Wing Kick feature engages when turning on headlands, tilting the wings up, resulting in less crop damage
• High clearance on the coulters helps prevent crop damage during turns
• Hydraulic down pressure on the wings gives coulters better ground penetration and more consistent application, ultimately resulting in higher yields
• High-flex toolbar promotes better ground penetration, even depth control, and consistent fertilizer placement in uneven terrain

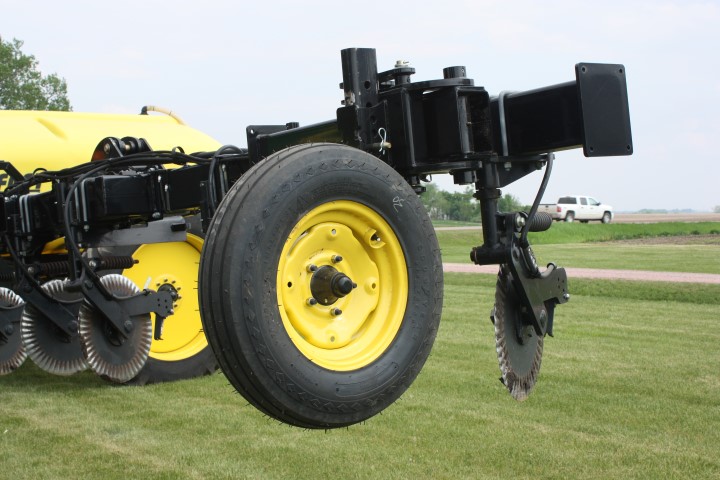

• Two-gauge wheels help achieve more consistent application across toolbar

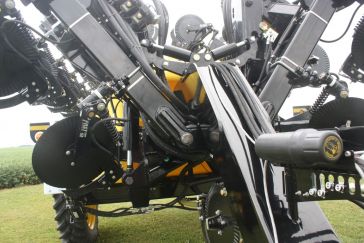

FAST Cast AP Coulters

• Patented AP coulter design places nitrogen at a consistent depth and flexible mounting
• Coulter is cast for long term-durability, ability to offset shank in eight different positions, and increased stability in varying soil conditions
• Coulter casting increases stability and minimizes deflection in the field, resulting in more consistent nitrogen placement
• Hex shank design allows toolbars to match up with nearly any row spacing and provides ability to offset 7.5” to the left or right quickly without additional brackets
• Ability to set degree of coulter swivel

Specifications

CAN YOU AFFORD TO TAKE RISKS WITH YOUR NITROGEN?
There has been a lot of discussion on nitrogen timing and the best methods to apply nitrogen. The University of Missouri states it well, “The BMP for timing of nitrogen (N) fertilizer applications is to apply fertilizer as close as possible to the period of rapid crop uptake (Figure 1). Managing N in this way will minimize losses of N from the field and will ensure adequate N availability to the crop during critical growth periods.”

In addition, the University of Purdue states that ear size is first determined at V5-V6; “Kernel row number determination of the uppermost ear begins shortly after the ear shoot is initiated (V5 to V6) and is thought to be complete as early as V8.”

Therefore, we know that the primary goals of applying nitrogen is to apply it as close to when your crops need it as possible and also to apply it in a way that will minimize your risk of nitrogen loss to ensure nitrogen is in the soil, available for your crops when they need it.

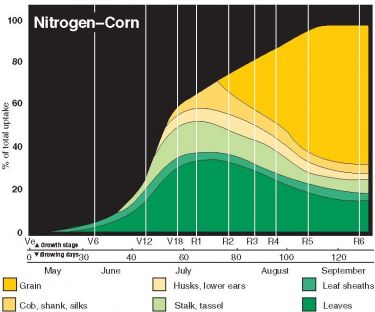

First let’s take a look at nitrogen timing

• If you apply all your nitrogen in the Fall you will have around 7 months from when you applied nitrogen to when your crops need it. This seems to be a big gamble and puts you at the mercy of weather to ensure that your nitrogen is still there and available in the Spring. If you get heavy rains in the Fall or Spring, you could lose a very significant portion of your nitrogen through leaching, which is also not as environmentally friendly since this nitrogen has nowhere to escape but deeper into the soil.
• If you apply all of your nitrogen pre-plant you have cut down on some of your risk of nitrogen loss but you are still applying 1-2 months before your crops need it so there is still some unnecessary risk of nitrogen loss through leaching.
• If you wait to apply a significant portion of your nitrogen until mid-summer right before the reproductive stage, you may not have all of you nitrogen needs met at V5-V6 when ear size is determined and you may have starved your crops during the early critical growth stages that give a baseline for future yield. In addition, what individuals pushing late-season side dress do not mention is that the microbes and organic matter in your soil contain a significant amount of nitrogen that is naturally released as the soil warms up through the summer.

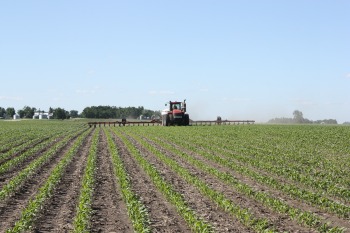

Therefore, early sidedress strikes the perfect balance between applying your nitrogen just before it is needed by your crops and also ensuring that all of your crops nitrogen needs are met during the critical growth stages.

Next, let’s take a look at nitrogen application methods, Dribble vs. Injection
The University of Purdue states that as much as 15-20% of surface applied urea-based nitrogen may volatilize (lost) within a week after application. They also stated that this risk is essentially zero if the product is injected into the soil.

If your nitrogen is applied on top of the soil you are relying on rain to take the nitrogen down to the roots where it is need for uptake. If we have a dry period in the summer, you are subjecting your nitrogen to significant risk of volatilization as it will convert into ammonia gas and escape into the atmosphere, never to be utilized in boosting the yield of your crops.

Injecting your nitrogen in the soil helps reduce this risk of volatilization and helps ensure that the nitrogen that you apply will still be there when your crops need it most.

Our crops are dependent enough upon timely rain, why would we also build this into our Nitrogen Program? Inject your N with a FAST Applicator and minimize this risk!

The University of Purdue sums it up best by stating “One of the keys to managing costs of nitrogen fertilizer or maximizing nitrogen use efficiency is to manage N sources wisely to minimize the risk of nitrogen loss due to leaching, denitrification, or volatilization. The use of a sidedress application strategy remains one of the easiest and least expensive ways to maximize nitrogen use efficiency.”

Invest in your operations with a Fast Applicator to maximize your nitrogen investment and yield by providing a boost of N just before ear size is determined and also minimizing your risk of N Loss by injecting your Nitrogen IN THE GROUND rather than taking an unnecessary risk and dribbling it on top.

Click Here to see Independent Yield Results and ROI – Four Year History showing an average ROI of $63.62 per year per acre through split application and side-dressing from V3-V6.

References
University of Purdue – https://www.agry.purdue.edu/ext/corn/news/timeless/CornRespLateSeasonN.html

University of Missouri – http://plantsci.missouri.edu/nutrientmanagement/nitrogen/practices.html

University of Purdue – https://www.agry.purdue.edu/ext/corn/news/timeless/earsize.html

Montana State University – http://store.msuextension.org/publications/AgandNaturalResources/EB0209.pdf

University of Purdue – https://www.agry.purdue.edu/ext/pubs/2006NLossMechanisms.pdf

Tank and Trailer

• Low-profile, patented “stealth” tank design improves rear vision and improves stability
• Excellent axle adjustability
• Choose from 4 tank capacities: from 1050, 1350, 1800, or 2400 gallons
• Single-reach tongue enables a sharper turning radius with less crop damage
• Short-coupled trailer minimizes crop damage on hills and during turns, resulting in greater yield
• Long-lasting hydraulic pump features a flow limiter for overspeed protection
• 2-speed heavy-duty jack stand with safe and easy hooking and unhooking
• Dual-wheel capable with three axle width options
• High crop clearance
• Baked-on powder coat paint resists effects of harsh chemicals, increasing equipment life and resale

Toolbar

• Flexible Row Spacing Options – 10” to 40”
• 7″x7″ single tube toolbar used on 20″-40″ coulter spacing
• 5″x7″ double tube toolbar used in 10″ and 15″ coulter spacing (only available with a 1800 or 2400 gallon tank)
• External hydraulic fold cylinder enables operator to fold in the toolbar at the maximum length and still use it at the lesser length
• Trademarked wing kick feature engages when toolbar is lifted up, tilting up the outer wings, resulting in less crop damage
• Hydraulic down pressure on the wings gives coulters better ground penetration and more consistent application, ultimately resulting in higher yields
• Flexing toolbar promotes better ground penetration, even depth control and fertilizer placement in uneven terrain
• Two-gauge wheels help achieve consistent application across toolbar

Fast Cast AP Coulters

• Patented AP coulter design places nitrogen at a consistent depth and flexible mounting
• Coulter is cast for long term-durability, ability to offset shank in eight different positions, and increased stability in varying soil conditions
• Coulter casting increases stability and minimizes deflection in the field, resulting in more consistent nitrogen placement
• Hex shank design allows toolbars to match up with nearly any row spacing and provides ability to offset 7.5” to the left or right quickly without additional brackets
• Ability to set degree of coulter swivel

Specifications

• Fast Crop Defender™ – Bolts to the back of the coulter to collect displaced soil from the coulter blade and prevent it from being “thrown” out towards the crop. Only an option with Straight Stream injection nozzles, not knives
• Variable Rate Tips – Provides flexibility and convenience when utilizing prescriptions or when changing rates from field-to-field
• ISO-ready connection integrates with your in-cab ISO display (John Deere 2630/4600, CNH AFS Pro 700, others), giving you control over application rate, section and swath, mapping, material monitoring and more
• Larger, narrower 6.7×15 gauge wheels increase toolbar flotation and excel narrow row applications and softer soil conditions
• Tank agitation helps keep liquid fertilizer adequately mixed in the main tank

CAN YOU AFFORD TO TAKE RISKS WITH YOUR NITROGEN?
There has been a lot of discussion on nitrogen timing and the best methods to apply nitrogen. The University of Missouri states it well, “The BMP for timing of nitrogen (N) fertilizer applications is to apply fertilizer as close as possible to the period of rapid crop uptake (Figure 1). Managing N in this way will minimize losses of N from the field and will ensure adequate N availability to the crop during critical growth periods.”

In addition, the University of Purdue states that ear size is first determined at V5-V6; “Kernel row number determination of the uppermost ear begins shortly after the ear shoot is initiated (V5 to V6) and is thought to be complete as early as V8.”

Therefore, we know that the primary goals of applying nitrogen is to apply it as close to when your crops need it as possible and also to apply it in a way that will minimize your risk of nitrogen loss to ensure nitrogen is in the soil, available for your crops when they need it.

First let’s take a look at nitrogen timing

• If you apply all your nitrogen in the Fall you will have around 7 months from when you applied nitrogen to when your crops need it. This seems to be a big gamble and puts you at the mercy of weather to ensure that your nitrogen is still there and available in the Spring. If you get heavy rains in the Fall or Spring, you could lose a very significant portion of your nitrogen through leaching, which is also not as environmentally friendly since this nitrogen has nowhere to escape but deeper into the soil.
• If you apply all of your nitrogen pre-plant you have cut down on some of your risk of nitrogen loss but you are still applying 1-2 months before your crops need it so there is still some unnecessary risk of nitrogen loss through leaching.
• If you wait to apply a significant portion of your nitrogen until mid-summer right before the reproductive stage, you may not have all of you nitrogen needs met at V5-V6 when ear size is determined and you may have starved your crops during the early critical growth stages that give a baseline for future yield. In addition, what individuals pushing late-season side dress do not mention is that the microbes and organic matter in your soil contain a significant amount of nitrogen that is naturally released as the soil warms up through the summer.

Therefore, early sidedress strikes the perfect balance between applying your nitrogen just before it is needed by your crops and also ensuring that all of your crops nitrogen needs are met during the critical growth stages.

Next, let’s take a look at nitrogen application methods, Dribble vs. Injection
The University of Purdue states that as much as 15-20% of surface applied urea-based nitrogen may volatilize (lost) within a week after application. They also stated that this risk is essentially zero if the product is injected into the soil.

If your nitrogen is applied on top of the soil you are relying on rain to take the nitrogen down to the roots where it is need for uptake. If we have a dry period in the summer, you are subjecting your nitrogen to significant risk of volatilization as it will convert into ammonia gas and escape into the atmosphere, never to be utilized in boosting the yield of your crops.

Injecting your nitrogen in the soil helps reduce this risk of volatilization and helps ensure that the nitrogen that you apply will still be there when your crops need it most.

Our crops are dependent enough upon timely rain, why would we also build this into our Nitrogen Program? Inject your N with a FAST Applicator and minimize this risk!

The University of Purdue sums it up best by stating “One of the keys to managing costs of nitrogen fertilizer or maximizing nitrogen use efficiency is to manage N sources wisely to minimize the risk of nitrogen loss due to leaching, denitrification, or volatilization. The use of a sidedress application strategy remains one of the easiest and least expensive ways to maximize nitrogen use efficiency.”

Invest in your operations with a Fast Applicator to maximize your nitrogen investment and yield by providing a boost of N just before ear size is determined and also minimizing your risk of N Loss by injecting your Nitrogen IN THE GROUND rather than taking an unnecessary risk and dribbling it on top.

Click Here to see Independent Yield Results and ROI – Four Year History showing an average ROI of $63.62 per year per acre through split application and side-dressing from V3-V6.

References
University of Purdue – https://www.agry.purdue.edu/ext/corn/news/timeless/CornRespLateSeasonN.html

University of Missouri – http://plantsci.missouri.edu/nutrientmanagement/nitrogen/practices.html

University of Purdue – https://www.agry.purdue.edu/ext/corn/news/timeless/earsize.html

Montana State University – http://store.msuextension.org/publications/AgandNaturalResources/EB0209.pdf

University of Purdue – https://www.agry.purdue.edu/ext/pubs/2006NLossMechanisms.pdf

Tank and Trailer

• Low-profile, patented “stealth” tank design improves rear vision and improves stability
• Sloped sump tank design assists in maximum clean-out
• Short-coupled trailer minimizes crop damage on hills and during turns, resulting in greater yield
• Single-reach tongue enables a sharper turning radius with less crop damage
• Dual-wheel capable, with one option of 62″to 120″ to fit your operation
• Long-lasting hydraulic pump features a flow limiter for overspeed protection
• 2-speed heavy-duty jack stand with safe and easy hooking and unhooking
• Baked-on powder coat paint resists effects of harsh chemicals, increasing equipment life and resale value

Toolbar

• 6″x4″ double-tube toolbar
• External hydraulic fold cylinder enables operator to fold the outer wings in and still use it at 40’
• Trademarked wing kick feature engages when turning on headlands, tilting the outer wings up, resulting in less crop damage
• High clearance helps prevent crop damage during turns
• Hydraulic down pressure on the wings gives coulters better ground penetration and more consistent
• Three flexing sections in toolbar flexes to promote better ground penetration, even depth control and fertilizer placement in uneven terrain
• Four-gauge wheels help achieve consistent application across toolbar

FAST Cast AP Coulters

• Patented AP coulter design places nitrogen at a consistent depth and flexible mounting
• Coulter is cast for long term-durability, ability to offset shank in eight different positions, and increased stability in varying soil conditions
• Coulter casting increases stability and minimizes deflection in the field, resulting in more consistent nitrogen placement
• Hex shank design allows toolbars to match up with nearly any row spacing and provides ability to offset 7.5” to the left or right quickly without additional brackets
• Ability to set degree of coulter swivel

Specifications

• Fast Crop Defender™ – Bolts to the back of the coulter to collect displaced soil from the coulter blade and prevent it from being “thrown” out towards the crop. Only an option with Straight Stream injection nozzles, not knives
• Variable Rate Tips – Provides flexibility and convenience when utilizing prescriptions or when changing rates from field-to-field
• Large-diameter single tires such as 380/90R54’s help reduce soil compaction and increase flotation
• Tank and trailer design provide maximum flexibility with multiple dual spacing options
• ISO-ready connection integrates with your in-cab ISO display (John Deere 2630/4600, CNH AFS Pro 700, others), giving you control over application rate, section and swath, mapping, material monitoring and more
• Larger, high flotation 6.7×15 gauge wheels increase toolbar flotation and excel narrow row applications and softer soil conditions
• Tank agitator helps keep liquid fertilizer adequately mixed in the main tank
• Pentair Hypro Cleanload Chemical Eductor provides easier liquid mixing and effective hopper clean-out system

CAN YOU AFFORD TO TAKE RISKS WITH YOUR NITROGEN?
There has been a lot of discussion on nitrogen timing and the best methods to apply nitrogen. The University of Missouri states it well, “The BMP for timing of nitrogen (N) fertilizer applications is to apply fertilizer as close as possible to the period of rapid crop uptake (Figure 1). Managing N in this way will minimize losses of N from the field and will ensure adequate N availability to the crop during critical growth periods.”

In addition, the University of Purdue states that ear size is first determined at V5-V6; “Kernel row number determination of the uppermost ear begins shortly after the ear shoot is initiated (V5 to V6) and is thought to be complete as early as V8.”

Therefore, we know that the primary goals of applying nitrogen is to apply it as close to when your crops need it as possible and also to apply it in a way that will minimize your risk of nitrogen loss to ensure nitrogen is in the soil, available for your crops when they need it.

First let’s take a look at nitrogen timing

• If you apply all your nitrogen in the Fall you will have around 7 months from when you applied nitrogen to when your crops need it. This seems to be a big gamble and puts you at the mercy of weather to ensure that your nitrogen is still there and available in the Spring. If you get heavy rains in the Fall or Spring, you could lose a very significant portion of your nitrogen through leaching, which is also not as environmentally friendly since this nitrogen has nowhere to escape but deeper into the soil.
• If you apply all of your nitrogen pre-plant you have cut down on some of your risk of nitrogen loss but you are still applying 1-2 months before your crops need it so there is still some unnecessary risk of nitrogen loss through leaching.
• If you wait to apply a significant portion of your nitrogen until mid-summer right before the reproductive stage, you may not have all of you nitrogen needs met at V5-V6 when ear size is determined and you may have starved your crops during the early critical growth stages that give a baseline for future yield. In addition, what individuals pushing late-season side dress do not mention is that the microbes and organic matter in your soil contain a significant amount of nitrogen that is naturally released as the soil warms up through the summer.

Therefore, early sidedress strikes the perfect balance between applying your nitrogen just before it is needed by your crops and also ensuring that all of your crops nitrogen needs are met during the critical growth stages.

Next, let’s take a look at nitrogen application methods, Dribble vs. Injection
The University of Purdue states that as much as 15-20% of surface applied urea-based nitrogen may volatilize (lost) within a week after application. They also stated that this risk is essentially zero if the product is injected into the soil.

If your nitrogen is applied on top of the soil you are relying on rain to take the nitrogen down to the roots where it is need for uptake. If we have a dry period in the summer, you are subjecting your nitrogen to significant risk of volatilization as it will convert into ammonia gas and escape into the atmosphere, never to be utilized in boosting the yield of your crops.

Injecting your nitrogen in the soil helps reduce this risk of volatilization and helps ensure that the nitrogen that you apply will still be there when your crops need it most.

Our crops are dependent enough upon timely rain, why would we also build this into our Nitrogen Program? Inject your N with a FAST Applicator and minimize this risk!

The University of Purdue sums it up best by stating “One of the keys to managing costs of nitrogen fertilizer or maximizing nitrogen use efficiency is to manage N sources wisely to minimize the risk of nitrogen loss due to leaching, denitrification, or volatilization. The use of a sidedress application strategy remains one of the easiest and least expensive ways to maximize nitrogen use efficiency.”

Invest in your operations with a Fast Applicator to maximize your nitrogen investment and yield by providing a boost of N just before ear size is determined and also minimizing your risk of N Loss by injecting your Nitrogen IN THE GROUND rather than taking an unnecessary risk and dribbling it on top.

Click Here to see Independent Yield Results and ROI – Four Year History showing an average ROI of $63.62 per year per acre through split application and side-dressing from V3-V6.

References
University of Purdue – https://www.agry.purdue.edu/ext/corn/news/timeless/CornRespLateSeasonN.html

University of Missouri – http://plantsci.missouri.edu/nutrientmanagement/nitrogen/practices.html

University of Purdue – https://www.agry.purdue.edu/ext/corn/news/timeless/earsize.html

Montana State University – http://store.msuextension.org/publications/AgandNaturalResources/EB0209.pdf

University of Purdue – https://www.agry.purdue.edu/ext/pubs/2006NLossMechanisms.pdf

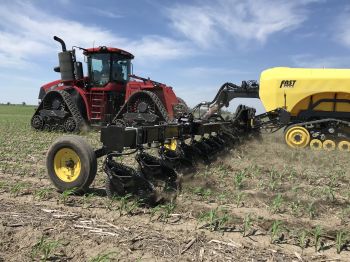

Tank and Trailer

• Industry Leading Narrow Transport Width – 11’10” wide with hydraulic folding gauge wheels or 14’2” with standard gauge wheels. Significantly reduces liability and operator stress on the road
• Single-reach tongue enables a sharper turning radius with less crop damage
• Innovative low-profile tank design offers a larger sump, enhanced weight distribution, and a lower/narrower profile to significantly increase operator visibility from the cab
• Toolbar folds over tank top to achieve the shortest transport height

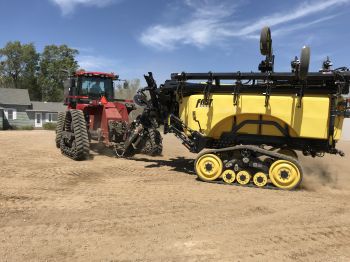

• Dual-wheel and CAMSO Track capable with three axle width options
• Long-lasting hydraulic pump features a flow limiter for overspeed protection
• 2-speed heavy-duty jack stand with safe and easy hooking and unhooking

Toolbar

• 5″x7″ double-tube toolbar on center section and main wings is available in either 60′ or 66′
• External hydraulic fold cylinder enables operator to fold in the toolbar at the maximum length and still use it at 40’
• Trademarked wing kick feature engages when toolbar is lifted up, tilting up the outer wings, resulting in less crop damage
• Hydraulic down pressure on the wings gives coulters better ground penetration and more consistent application, ultimately resulting in higher yields

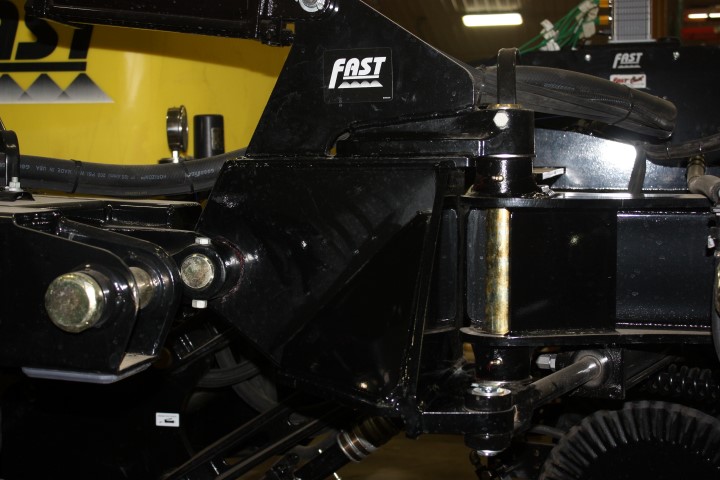

• Wide-stance parallel linkage prevents the toolbar reduces stress on center section, aids in even raising and lowering, and prevents toolbar from “walking” when higher ground speeds are reached
• Parallel link cast design gives added strength and durability
• Industry-leading narrow transport width for increased safety and lower road liability

Fast Cast AP Coulter

• Patented AP coulter design places nitrogen at a consistent depth and flexible mounting
• Coulter is cast for long term-durability, ability to offset shank in eight different positions, and increased stability in varying soil conditions
• Coulter casting increases stability and minimizes deflection in the field, resulting in more consistent nitrogen placement
• Hex shank design allows toolbars to match up with nearly any row spacing and provides ability to offset 7.5” to the left or right quickly without additional brackets
• Ability to set degree of coulter swivel

Toolbar

• Toolbar’s three flexing sections promote better ground penetration, even depth control and fertilizer placement in uneven terrain
• Trademarked Flex Hinge allows for below-level travel on the toolbar, ensuring coulter maintains ground contact, eliminating wasted nitrogen
• Unique side-fold transport position narrows the travel width
• Four-gauge wheels help achieve consistent application across toolbar

Specifications

• Fast Crop Defender™ – Bolts to the back of the coulter to collect displaced soil from the coulter blade and prevent it from being “thrown” out towards the crop. Only an option with Straight Stream injection nozzles, not knives
• Variable Rate Tips – Provides flexibility and convenience when utilizing prescriptions or when changing rates from field-to-field
• 15” CAMSO track system for up to 80% more flotation and fewer tracks in the field
• PWM pump for increased pump longevity, quicker on/off or rate change reaction time, and more efficient hydraulic flow utilization
• Additional hydraulic downforce on outer flip wings for greater consistency in uneven terrain
• Folding gauge wheel reduces road liability, reducing transport width to 11′-10″
• Added Hydraulic down pressure on flip wings increases flexing sections to five
• Large-diameter single tires help reduce soil compaction and increase flotation with larger diameter single tires
• Tank and trailer design provide maximum flexibility with multiple dual spacing options
• Optional 15″ Camoplast tracks reduce ground pressure up to 78% and include durable cast undercarriage, oil bath bearings and midrollers that move side-to-side and front-to-back
• ISO-ready connection integrates with your in-cab ISO display (John Deere 2630/4600, CNH AFS Pro 700, others), giving you control over application rate, section and swath, mapping, material monitoring and more
• Larger, narrower 6.7×15 gauge wheels increase toolbar flotation and excel narrow row applications and softer soil conditions
• Tank agitation helps keep liquid fertilizer adequately mixed in the main tank
• Pentair Hypro Cleanload Chemical Eductor provides easier liquid mixing and effective hopper clean-out system

CAN YOU AFFORD TO TAKE RISKS WITH YOUR NITROGEN?
There has been a lot of discussion on nitrogen timing and the best methods to apply nitrogen. The University of Missouri states it well, “The BMP for timing of nitrogen (N) fertilizer applications is to apply fertilizer as close as possible to the period of rapid crop uptake (Figure 1). Managing N in this way will minimize losses of N from the field and will ensure adequate N availability to the crop during critical growth periods.”

In addition, the University of Purdue states that ear size is first determined at V5-V6; “Kernel row number determination of the uppermost ear begins shortly after the ear shoot is initiated (V5 to V6) and is thought to be complete as early as V8.”

Therefore, we know that the primary goals of applying nitrogen is to apply it as close to when your crops need it as possible and also to apply it in a way that will minimize your risk of nitrogen loss to ensure nitrogen is in the soil, available for your crops when they need it.

First let’s take a look at nitrogen timing

• If you apply all your nitrogen in the Fall you will have around 7 months from when you applied nitrogen to when your crops need it. This seems to be a big gamble and puts you at the mercy of weather to ensure that your nitrogen is still there and available in the Spring. If you get heavy rains in the Fall or Spring, you could lose a very significant portion of your nitrogen through leaching, which is also not as environmentally friendly since this nitrogen has nowhere to escape but deeper into the soil.
• If you apply all of your nitrogen pre-plant you have cut down on some of your risk of nitrogen loss but you are still applying 1-2 months before your crops need it so there is still some unnecessary risk of nitrogen loss through leaching.
• If you wait to apply a significant portion of your nitrogen until mid-summer right before the reproductive stage, you may not have all of you nitrogen needs met at V5-V6 when ear size is determined and you may have starved your crops during the early critical growth stages that give a baseline for future yield. In addition, what individuals pushing late-season side dress do not mention is that the microbes and organic matter in your soil contain a significant amount of nitrogen that is naturally released as the soil warms up through the summer.

Therefore, early sidedress strikes the perfect balance between applying your nitrogen just before it is needed by your crops and also ensuring that all of your crops nitrogen needs are met during the critical growth stages.

Next, let’s take a look at nitrogen application methods, Dribble vs. Injection
The University of Purdue states that as much as 15-20% of surface applied urea-based nitrogen may volatilize (lost) within a week after application. They also stated that this risk is essentially zero if the product is injected into the soil.

If your nitrogen is applied on top of the soil you are relying on rain to take the nitrogen down to the roots where it is need for uptake. If we have a dry period in the summer, you are subjecting your nitrogen to significant risk of volatilization as it will convert into ammonia gas and escape into the atmosphere, never to be utilized in boosting the yield of your crops.

Injecting your nitrogen in the soil helps reduce this risk of volatilization and helps ensure that the nitrogen that you apply will still be there when your crops need it most.

Our crops are dependent enough upon timely rain, why would we also build this into our Nitrogen Program? Inject your N with a FAST Applicator and minimize this risk!

The University of Purdue sums it up best by stating “One of the keys to managing costs of nitrogen fertilizer or maximizing nitrogen use efficiency is to manage N sources wisely to minimize the risk of nitrogen loss due to leaching, denitrification, or volatilization. The use of a sidedress application strategy remains one of the easiest and least expensive ways to maximize nitrogen use efficiency.”

Invest in your operations with a Fast Applicator to maximize your nitrogen investment and yield by providing a boost of N just before ear size is determined and also minimizing your risk of N Loss by injecting your Nitrogen IN THE GROUND rather than taking an unnecessary risk and dribbling it on top.

Click Here to see Independent Yield Results and ROI – Four Year History showing an average ROI of $63.62 per year per acre through split application and side-dressing from V3-V6.

References
University of Purdue – https://www.agry.purdue.edu/ext/corn/news/timeless/CornRespLateSeasonN.html

University of Missouri – http://plantsci.missouri.edu/nutrientmanagement/nitrogen/practices.html

University of Purdue – https://www.agry.purdue.edu/ext/corn/news/timeless/earsize.html

Montana State University – http://store.msuextension.org/publications/AgandNaturalResources/EB0209.pdf

University of Purdue – https://www.agry.purdue.edu/ext/pubs/2006NLossMechanisms.pdf

Tank and Trailer

• Low-profile, patented “stealth” tank design improves rear vision and improves stability
• Excellent axle adjustability
• Extra-large tank capacity: 2400 gallons
• 10-gallon handwash tank
• Single-reach tongue enables a sharper turning radius with less crop damage
• Short-coupled trailer minimizes crop damage on hills and during turns, resulting in greater yield
• Long-lasting hydraulic pump features a flow limiter for overspeed protection
• 2-speed heavy-duty jack stand with safe and easy hooking and unhooking
• Dual-wheel capable
• High crop clearance
• Baked-on powder coat paint resists effects of harsh chemicals, increasing equipment life and resale

Toolbar

• 5″x7″ double tube toolbar available in 80’ or 90’ lengths
• 90’ toolbar is one of the industry’s largest, enabling you to cover more ground in less time
• External hydraulic fold cylinder enables operator to fold in the toolbar’s outer wing at 90” while still using the toolbar at 60’
• Trademarked wing kick feature engages when toolbar is lifted up, tilting up the outer wings, resulting in less crop damage
• Hydraulic down pressure on the wings gives coulters better ground penetration and more consistent application, ultimately resulting in higher yields
• Flexing toolbar promotes better ground penetration, even depth control and fertilizer placement in uneven terrain
• Additional flex hinge ensures coulter maintains contact with the ground, preventing waste of costly nitrogen
• Four-gauge wheels help achieve consistent application across toolbar

Fast Cast AP Coulters

• Patented AP coulter design places nitrogen at a consistent depth and flexible mounting
• Coulter is cast for long term-durability, ability to offset shank in eight different positions, and increased stability in varying soil conditions
• Coulter casting increases stability and minimizes deflection in the field, resulting in more consistent nitrogen placement
• Hex shank design allows toolbars to match up with nearly any row spacing and provides ability to offset 7.5” to the left or right quickly without additional brackets
• Ability to set degree of coulter swivel

Specifications

• CAMSO 15″ wide TTS Tracks
• Fast Crop Defender™ – Bolts to the back of the coulter to collect displaced soil from the coulter blade and prevent it from being “thrown” out towards the crop. Only an option with Straight Stream injection nozzles, not knives
• Variable Rate Tips – Provides flexibility and convenience when utilizing prescriptions or when changing rates from field-to-field
• Large-diameter single tires help reduce soil compaction and increase flotation or upgrade to larger dual tires
• Tank and trailer design provide maximum flexibility with multiple dual spacing options
• ISO-ready connection integrates with your in-cab ISO display (John Deere 2630/4600, CNH AFS Pro 700, others), giving you control over application rate, section and swath, mapping, material monitoring and more
• Tank agitator helps keep liquid fertilizer adequately mixed in the main tank

CAN YOU AFFORD TO TAKE RISKS WITH YOUR NITROGEN?
There has been a lot of discussion on nitrogen timing and the best methods to apply nitrogen. The University of Missouri states it well, “The BMP for timing of nitrogen (N) fertilizer applications is to apply fertilizer as close as possible to the period of rapid crop uptake (Figure 1). Managing N in this way will minimize losses of N from the field and will ensure adequate N availability to the crop during critical growth periods.”

In addition, the University of Purdue states that ear size is first determined at V5-V6; “Kernel row number determination of the uppermost ear begins shortly after the ear shoot is initiated (V5 to V6) and is thought to be complete as early as V8.”

Therefore, we know that the primary goals of applying nitrogen is to apply it as close to when your crops need it as possible and also to apply it in a way that will minimize your risk of nitrogen loss to ensure nitrogen is in the soil, available for your crops when they need it.

First let’s take a look at nitrogen timing

• If you apply all your nitrogen in the Fall you will have around 7 months from when you applied nitrogen to when your crops need it. This seems to be a big gamble and puts you at the mercy of weather to ensure that your nitrogen is still there and available in the Spring. If you get heavy rains in the Fall or Spring, you could lose a very significant portion of your nitrogen through leaching, which is also not as environmentally friendly since this nitrogen has nowhere to escape but deeper into the soil.
• If you apply all of your nitrogen pre-plant you have cut down on some of your risk of nitrogen loss but you are still applying 1-2 months before your crops need it so there is still some unnecessary risk of nitrogen loss through leaching.
• If you wait to apply a significant portion of your nitrogen until mid-summer right before the reproductive stage, you may not have all of you nitrogen needs met at V5-V6 when ear size is determined and you may have starved your crops during the early critical growth stages that give a baseline for future yield. In addition, what individuals pushing late-season side dress do not mention is that the microbes and organic matter in your soil contain a significant amount of nitrogen that is naturally released as the soil warms up through the summer.

Therefore, early sidedress strikes the perfect balance between applying your nitrogen just before it is needed by your crops and also ensuring that all of your crops nitrogen needs are met during the critical growth stages.

Next, let’s take a look at nitrogen application methods, Dribble vs. Injection
The University of Purdue states that as much as 15-20% of surface applied urea-based nitrogen may volatilize (lost) within a week after application. They also stated that this risk is essentially zero if the product is injected into the soil.

If your nitrogen is applied on top of the soil you are relying on rain to take the nitrogen down to the roots where it is need for uptake. If we have a dry period in the summer, you are subjecting your nitrogen to significant risk of volatilization as it will convert into ammonia gas and escape into the atmosphere, never to be utilized in boosting the yield of your crops.

Injecting your nitrogen in the soil helps reduce this risk of volatilization and helps ensure that the nitrogen that you apply will still be there when your crops need it most.

Our crops are dependent enough upon timely rain, why would we also build this into our Nitrogen Program? Inject your N with a FAST Applicator and minimize this risk!

The University of Purdue sums it up best by stating “One of the keys to managing costs of nitrogen fertilizer or maximizing nitrogen use efficiency is to manage N sources wisely to minimize the risk of nitrogen loss due to leaching, denitrification, or volatilization. The use of a sidedress application strategy remains one of the easiest and least expensive ways to maximize nitrogen use efficiency.”

Invest in your operations with a Fast Applicator to maximize your nitrogen investment and yield by providing a boost of N just before ear size is determined and also minimizing your risk of N Loss by injecting your Nitrogen IN THE GROUND rather than taking an unnecessary risk and dribbling it on top.

Click Here to see Independent Yield Results and ROI – Four Year History showing an average ROI of $63.62 per year per acre through split application and side-dressing from V3-V6.

References
University of Purdue – https://www.agry.purdue.edu/ext/corn/news/timeless/CornRespLateSeasonN.html

University of Missouri – http://plantsci.missouri.edu/nutrientmanagement/nitrogen/practices.html

University of Purdue – https://www.agry.purdue.edu/ext/corn/news/timeless/earsize.html

Montana State University – http://store.msuextension.org/publications/AgandNaturalResources/EB0209.pdf

University of Purdue – https://www.agry.purdue.edu/ext/pubs/2006NLossMechanisms.pdf

Applicator
813P (60′)

• 4”x6” double tube toolbar in 60’ length
• Flexing toolbar promotes better ground penetration, even depth control and fertilizer placement in uneven terrain
• 4-gauge wheels help achieve consistent application across toolbar
• Baked-on powder coat paint resists effects of harsh chemicals, increasing equipment life and resale
• Toolbar can fold to apply at both a 40’ and 60’ width
• Trademarked wing kick feature engages when lifting the toolbar to turn on headlands, resulting in less crop damage
• Hydraulic toolbar downforce to provide more consistent nitrogen placement

833P (30’/40′)

• 7″x7″ tube toolbar available in 30’ or 40’ lengths
• External hydraulic fold cylinder enables operator to fold in the toolbar’s outer wing at 40’ while still using the toolbar at 30’
• Trademarked wing kick feature engages when toolbar is lifted up, tilting up the outer wings, resulting in less crop damage
• Flexing toolbar promotes better ground penetration, even depth control and fertilizer placement in uneven terrain
• Baked-on powder coat paint resists effects of harsh chemicals, increasing equipment life and resale

Fast Cast AP Coulters

• Patented AP coulter design places nitrogen at a consistent depth and flexible mounting
• Coulter is cast for long term-durability, ability to offset shank in eight different positions, and increased stability in varying soil conditions
• Coulter casting increases stability and minimizes deflection in the field, resulting in more consistent nitrogen placement
• Hex shank design allows toolbars to match up with nearly any row spacing and provides ability to offset 7.5” to the left or right quickly without additional brackets
• Ability to set degree of coulter swivel

CAN YOU AFFORD TO TAKE RISKS WITH YOUR NITROGEN?
There has been a lot of discussion on nitrogen timing and the best methods to apply nitrogen. The University of Missouri states it well, “The BMP for timing of nitrogen (N) fertilizer applications is to apply fertilizer as close as possible to the period of rapid crop uptake (Figure 1). Managing N in this way will minimize losses of N from the field and will ensure adequate N availability to the crop during critical growth periods.”

In addition, the University of Purdue states that ear size is first determined at V5-V6; “Kernel row number determination of the uppermost ear begins shortly after the ear shoot is initiated (V5 to V6) and is thought to be complete as early as V8.”

Therefore, we know that the primary goals of applying nitrogen is to apply it as close to when your crops need it as possible and also to apply it in a way that will minimize your risk of nitrogen loss to ensure nitrogen is in the soil, available for your crops when they need it.

First let’s take a look at nitrogen timing

• If you apply all your nitrogen in the Fall you will have around 7 months from when you applied nitrogen to when your crops need it. This seems to be a big gamble and puts you at the mercy of weather to ensure that your nitrogen is still there and available in the Spring. If you get heavy rains in the Fall or Spring, you could lose a very significant portion of your nitrogen through leaching, which is also not as environmentally friendly since this nitrogen has nowhere to escape but deeper into the soil.
• If you apply all of your nitrogen pre-plant you have cut down on some of your risk of nitrogen loss but you are still applying 1-2 months before your crops need it so there is still some unnecessary risk of nitrogen loss through leaching.
• If you wait to apply a significant portion of your nitrogen until mid-summer right before the reproductive stage, you may not have all of you nitrogen needs met at V5-V6 when ear size is determined and you may have starved your crops during the early critical growth stages that give a baseline for future yield. In addition, what individuals pushing late-season side dress do not mention is that the microbes and organic matter in your soil contain a significant amount of nitrogen that is naturally released as the soil warms up through the summer.

Therefore, early sidedress strikes the perfect balance between applying your nitrogen just before it is needed by your crops and also ensuring that all of your crops nitrogen needs are met during the critical growth stages.

Next, let’s take a look at nitrogen application methods, Dribble vs. Injection
The University of Purdue states that as much as 15-20% of surface applied urea-based nitrogen may volatilize (lost) within a week after application. They also stated that this risk is essentially zero if the product is injected into the soil.

If your nitrogen is applied on top of the soil you are relying on rain to take the nitrogen down to the roots where it is need for uptake. If we have a dry period in the summer, you are subjecting your nitrogen to significant risk of volatilization as it will convert into ammonia gas and escape into the atmosphere, never to be utilized in boosting the yield of your crops.

Injecting your nitrogen in the soil helps reduce this risk of volatilization and helps ensure that the nitrogen that you apply will still be there when your crops need it most.

Our crops are dependent enough upon timely rain, why would we also build this into our Nitrogen Program? Inject your N with a FAST Applicator and minimize this risk!

The University of Purdue sums it up best by stating “One of the keys to managing costs of nitrogen fertilizer or maximizing nitrogen use efficiency is to manage N sources wisely to minimize the risk of nitrogen loss due to leaching, denitrification, or volatilization. The use of a sidedress application strategy remains one of the easiest and least expensive ways to maximize nitrogen use efficiency.”

Invest in your operations with a Fast Applicator to maximize your nitrogen investment and yield by providing a boost of N just before ear size is determined and also minimizing your risk of N Loss by injecting your Nitrogen IN THE GROUND rather than taking an unnecessary risk and dribbling it on top.

Click Here to see Independent Yield Results and ROI – Four Year History showing an average ROI of $63.62 per year per acre through split application and side-dressing from V3-V6.

References
University of Purdue – https://www.agry.purdue.edu/ext/corn/news/timeless/CornRespLateSeasonN.html

University of Missouri – http://plantsci.missouri.edu/nutrientmanagement/nitrogen/practices.html

University of Purdue – https://www.agry.purdue.edu/ext/corn/news/timeless/earsize.html

Montana State University – http://store.msuextension.org/publications/AgandNaturalResources/EB0209.pdf

University of Purdue – https://www.agry.purdue.edu/ext/pubs/2006NLossMechanisms.pdf
