Standard Features

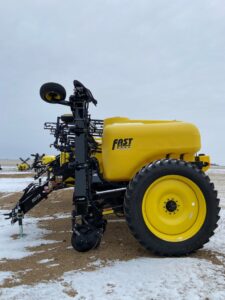

Tank and Trailer

• Low-profile, patented “stealth” tank design improves rear vision and improves stability
• Sloped sump tank design assists in maximum clean-out
• Choose from 2 tank capacities: 1,050 or 1,350 gallons
• Single-reach tongue enables a sharper turning radius with less crop damage
• Short-coupled trailer minimizes crop damage on hills and during turns, resulting in greater yield
• Option to choose John Blue ground drive pump
• Option to substitute 380/90R46″ tires on the 1350-gallon model
• Baked-on powder coat paint resists effects of harsh chemicals, increasing equipment life and resale

Toolbar

• 7″x7″ tube toolbar can be used at 30′ or 40′ width
• External hydraulic fold cylinder enables operator to fold in the toolbar at 40’ and still use it at 30’
• Trademarked Hydraulic Wing Kick feature engages when turning on headlands, tilting the wings up, resulting in less crop damage
• High clearance on the coulters helps prevent crop damage during turns
• Hydraulic down pressure on the wings gives coulters better ground penetration and more consistent application, ultimately resulting in higher yields
• High-flex toolbar promotes better ground penetration, even depth control, and consistent fertilizer placement in uneven terrain
• Two-gauge wheels help achieve more consistent application across toolbar

FAST Cast AP Coulters

• Patented AP coulter design places nitrogen at a consistent depth and flexible mounting
• Coulter is cast for long term-durability, ability to offset shank in eight different positions, and increased stability in varying soil conditions
• Coulter casting increases stability and minimizes deflection in the field, resulting in more consistent nitrogen placement
• Hex shank design allows toolbars to match up with nearly any row spacing and provides ability to offset 7.5” to the left or right quickly without additional brackets
• Ability to set degree of coulter swivel
