BIG WHEEL

Maneuverable, compact, and durable, this option rich sprayer is offered with a 45' or 60’ boom and a 500 or 750-gallon tank capacity.

Contact a Dealer

What You Need To Know About BIG WHEEL?

Standard FeaturesBig Wheel

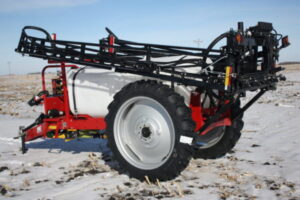

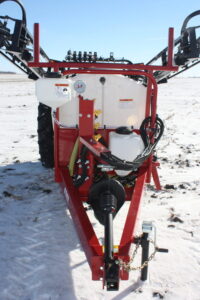

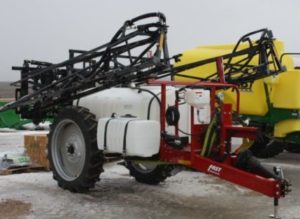

Maneuverable, and compact, the Fast Big Wheel is ideal for quick spraying in tight field environments. Choose from two boom options – 45’ or 60’, and two tank capacities – 500 or 750 gallons. Like all Fast sprayers, the Big Wheel is built for durability to the strictest quality standards.

Tank and Trailer

  • Low-profile tank design for enhanced rear vision
  • High-clearance frame for reduced crop damage
  • Short-coupled trailer minimizes crop damage during turns

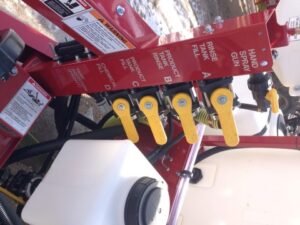

  • Clutter-free platform design
  • Chemical Eductor Standard
Boom
  • Durable yet lightweight breakaway with fore and aft movement
  • Self-stabilizing boom offers a superior ride, faster spraying capability, multiple spray heights and more accurate weed kill
  • 45′ or 60′ Boom
  • Quick boom set-up

Spraying

  • Teejet AIXR air induction spray tips offer excellent weed kill and better drift control
  • Choose between an Ace 150-206F hydraulic pump or Ace 150 Series 540 PTO pump

Cleaning

  • Stainless steel wet boom plumbing for more thorough residue clean-out

Specifications

Model Big Wheel (45′ or 60′)
Transport Height 8’4″ (500-gal.)
Transport Width 8’1″ (500-gal.)
Transport Length 17’6″(500-gal.)
Transport Weight Empty 3240 (500-gal.)
Field Weight Tanks Full 8320 (500-gal.)
Tank Size Gallons 500 or 750
Boom Sizes 45′ (500-gal.) or 60′ (750-gal.)
Tank Rinse System 50 Gallon Rinse Tank
Standard Pump Ace 150-206F or Ace 540 PTO
Tires 12.4×24″ or 11.2×38″
Dual Wheel Capability No
Quick Fill 2″
Hitch-pin-to-axle length 144″ (500-gal.)
